Vacuum down to -98 kPa
Need selection quotation, sample testing, voltage customization?
13827229292
You can also use online customer service or Wangwang consultation to obtain detailed information and installation dimension drawings

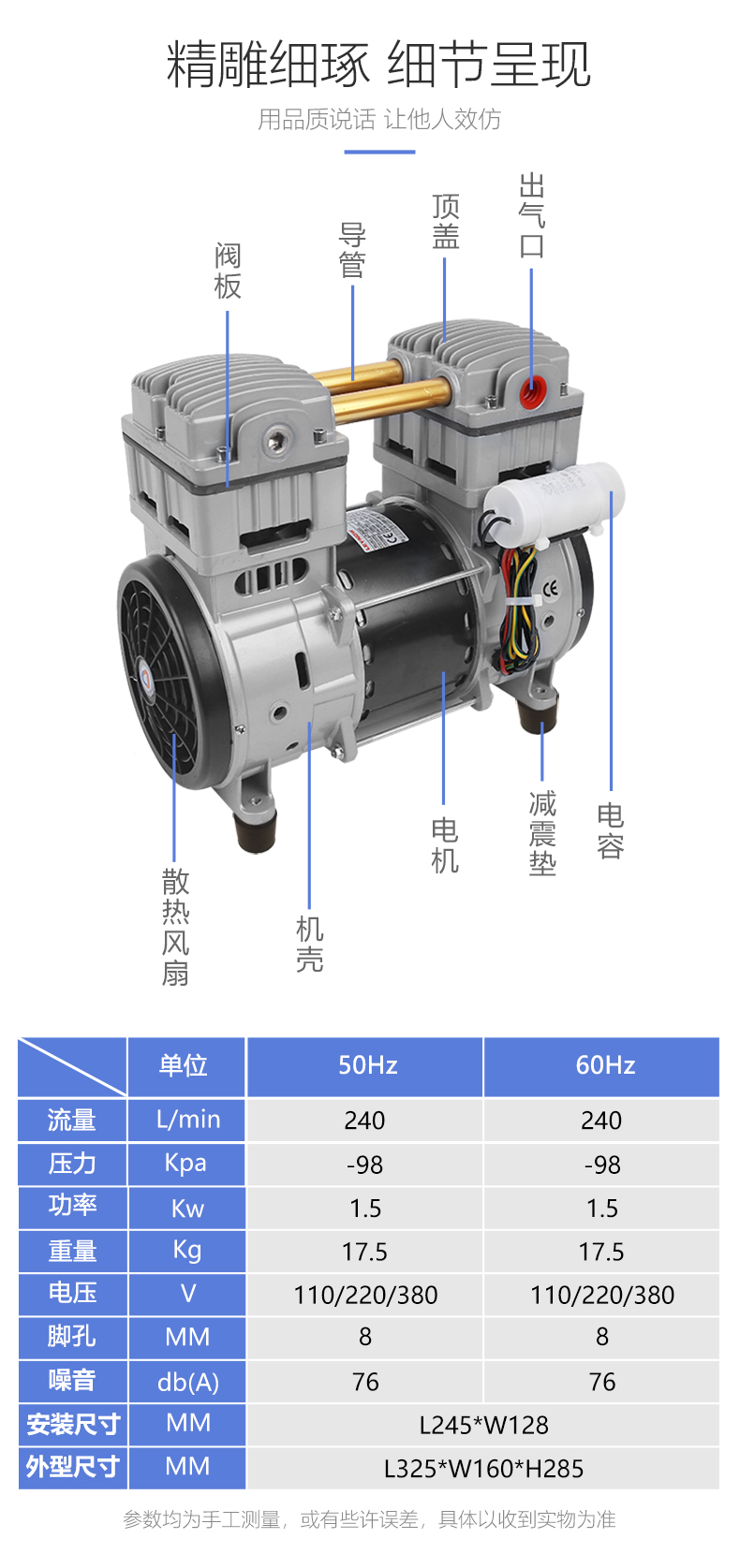

| Item | Standard |
|---|---|
| Rated Voltage/Frequency (V/Hz) | 220V/50Hz/35uF(customizable) |
| Input Power (W) | ≤1500W 6.8A |
| Max. Air Flow (m³/h) | ≤14.4 m3/h(240L/min) |
| Min. Vacuum (Negative) kPa | -98kPa(-740mmHg) |
| Noise (dB(A)) | ≤ 76 dB(A) |
| Amplitude (mm) | |
| Ambient Temperature (°C) | 5-40 °C |
| Insulation Class | B |
| Cold Insulation Resistance (MΩ) | ≥100MΩ |
| Dielectric Strength | 1500V/50Hz 1min, no breakdown |
| Thermal Protector (°C) | Auto reset 130±5°C |
| Weight | 17.5Kg |
| Mounting Dimensions | L245*W128mm(mounting hole Ø8mm) |
| Dimensions | L325*W160*H285mm |
| Restart Pressure | 0kPa |
| Inlet/Outlet Nozzle OD | G1/2 |
The performance curve diagram shows the flow attenuation data corresponding to different negative pressures, making it convenient for engineers to evaluate continuous pumping working conditions; the installation dimension drawing includes the complete machine outline, fixing foot holes, and inlet/outlet positions, which can be directly used for equipment structure design. High-definition PDF originals can be requested by filling out the form below.

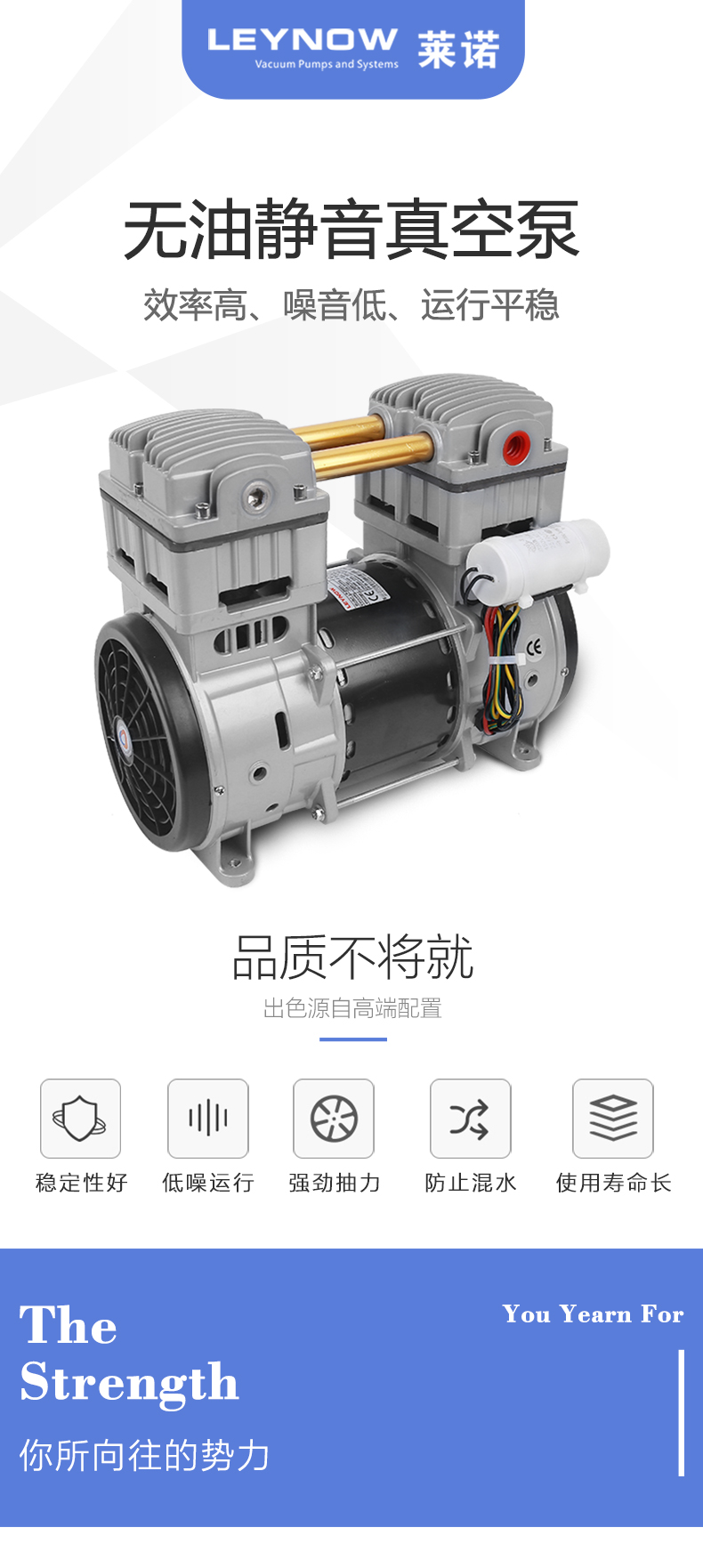

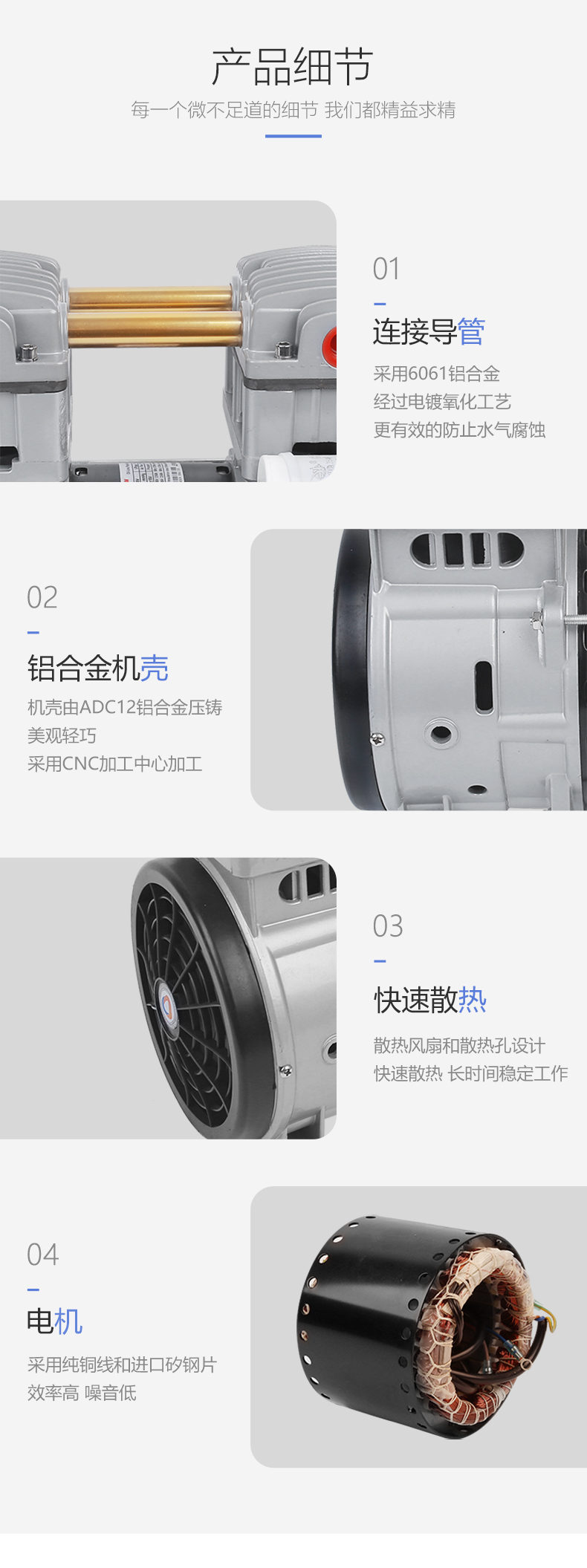

Oil-free, maintenance-free
Each unit is fitted with an overload protector to prevent burnout under overload.
Fill in the following information, and we will quickly send the HP-0200V official quotation and technical documents to your email. Engineers can provide one-on-one selection support.
