  • HP-1200H Oil-free silent vacuum pump
  • HP-1200H Oil-free silent vacuum pump
  • HP-1200H Oil-free silent vacuum pump
  • HP-1200H Oil-free silent vacuum pump

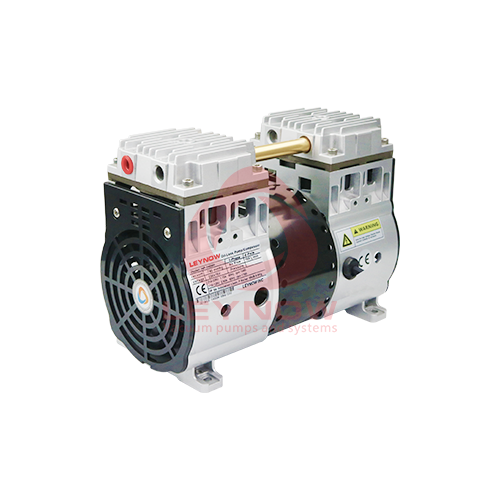

HP-1200H Oil-free silent vacuum pump

  • Motor power：0.35 Kw
  • Ultimate vacuum：980 mBar
  • Rated voltage：110V/220-240V
  • Rated flow：5.4 m3/h
  • Rated current：2.8/1.5 A
  • Noise level：58 dB(A)
  • Product weight：8.5 Kg
  • Industry application：
    Vacuum packaging
Online Consultation Wangwang Customer Service

Product Description：Ultra-low vacuum, ultra-low silent, lightweight, beautiful appearance, simple structure, easy maintenance, completely oil-free and easier to maintain.

Welcome to call us for consultation：4006 112 722
Project Standard
Rated voltage/frequency V/Hz 220V/50Hz/10uF (Can be made as required)
Input power W ≤350W 3.0A
Maximum air flow m3/h ≤5.4m³/h(90L/min)
Minimum vacuum degree (negative pressure)KPa -98KPa(-740mmHg)
Noise dB(A) ≤ 58 dB(A)
Amplitude (mm)
Use ambient temperature ℃ 5-40 ℃
Insulation level B
Cold insulation resistance (normal) MΩ ≥100MΩ
Withstand voltage strength 1500V/50Hz 1min No breakdown
Thermal protector ℃ Automatic reset 130±5℃
Weight 8.5Kg
Installation dimensions L203*W112mm(Installation foot holes ￠6mm)
Overall dimensions L244*W128*H186mm
restart pressure 0KPa
Intake and exhaust nozzle outer diameter 1/4-19PT pipe thread

Leynow oil-free vacuum pump performance advantages

●1. The vacuum degree is as high as -98kap, leading the industry.

●2. Equipped with rubber shock-absorbing feet for smoother operation.

●3. 100% oil-free and maintenance-free.

●4. Silent and noise control at around 60 decibels.

●5. Small size and beautiful appearance.

●6. They are all equipped with overload protectors and will not burn out due to overload.

●7. Free delivery of small accessories: muffler, filter, shock absorber, air pipe joint.
